Car, marine & subwoofer amplifier, car & marine radio (with weather band and interfaces for iPod, satellite radio, MP3, USB and SD card), motorcycle and marine audio, backpack audio, power inverter, ballast, OEM, ODM, EMS. Earliest car amplifier manufacturer in China. 12 years experence for car & subwoofer amplifier.

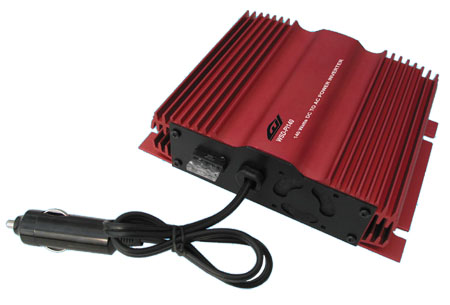

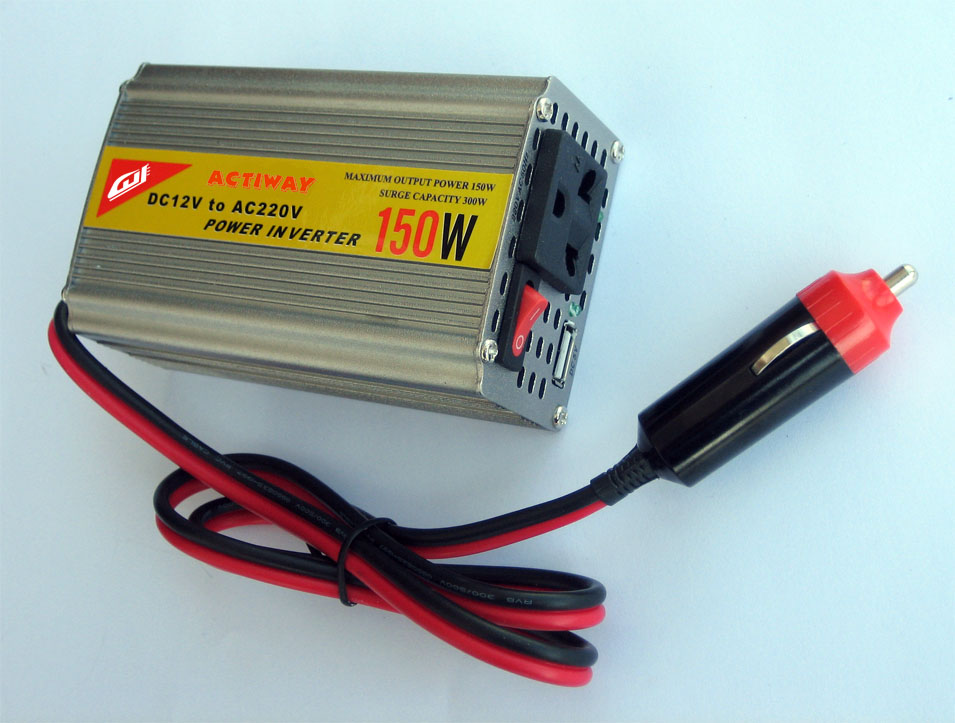

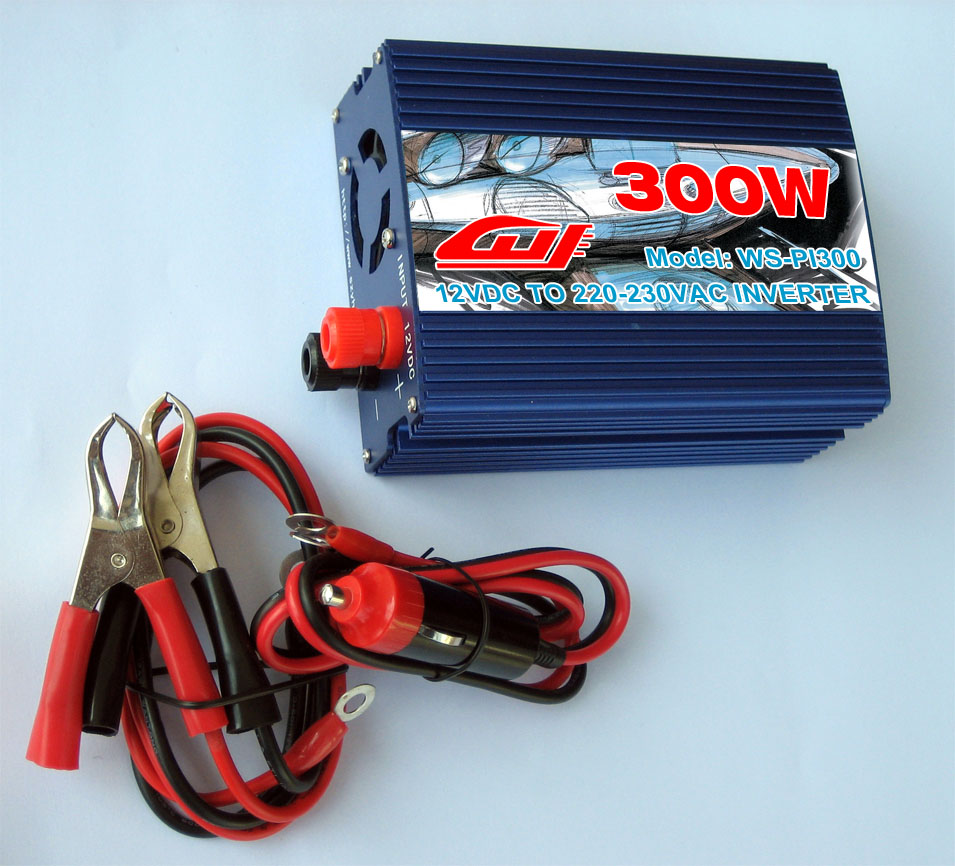

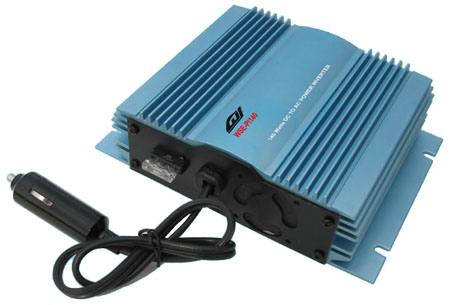

Welcome    Home | Back Power Inverter   WS-PI150 ( Click for Large Photo ) WS-PI300 ( Click for Large Photo )   Description   性能简介 Low voltage & overload protection Built-in fuse Small profile, light weight, green sound High efficiency Strong load compatibility & stability Quickly Response Over-current & short-circuit protection Suitable for 12V DC vehicle Specifications WSD-PI140 WSE-PI140 Input Voltage Range 10-15V DC 10-15V DC Output voltage AC 110V/60Hz AC 110V/60Hz Rated Power 140W 140W Peak Power 280W 280W Output wave form Modified sine wave Modified sine wave Converting efficiency >90% >90% No Load Current Draw <0.2A <0.2A Low Voltage Shut Down At 10.0V At 10.0V Over Temperature Shut Down Yes, Automatic Yes, Automatic Overload Shut Down Yes, Automatic Yes, Automatic Temperature protection 80°C 80°C Fuse rating 25A 25A Input and output short-circuit protection Yes, Automatic Yes, Automatic Dimention (L×W×H) 180x180x48 mm 180x180x48 mm N.W./G.W. 0.85kg/1.05kg 0.85kg/1.05kg WSD-PI140 WSE-PI140
